# Exercise 4-1: Scaling out and Scaling in TiDB Cloud Cluster

## Overview
+ In this exercise, you scale out and scale in TiDB cluster on TiDB Cloud.


## Notes:
+ This task is for `TiDB Dedicated` cluster only.

## Duration
+ This exercise should take you approximately 15 minutes to complete.

## Tasks
1. Click drop-down menu in the upper-right corner, and then select `Modify`.
2. In the `Modify Cluster` window, scale out or scale in TiDB cluster.

## Solution Steps
(a) Scale out TiDB Cloud cluster

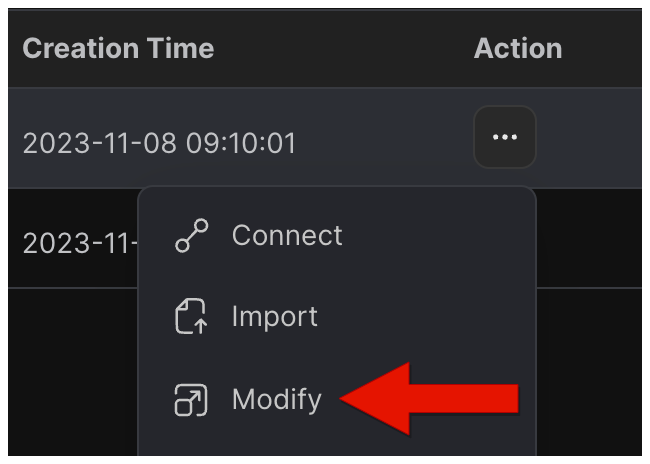

1. Click drop-down menu in the upper-right corner, and then select `Modify`.
<img src="./diagram/GoModify_aa_002_20230119.png" width="50%" align="top"/>

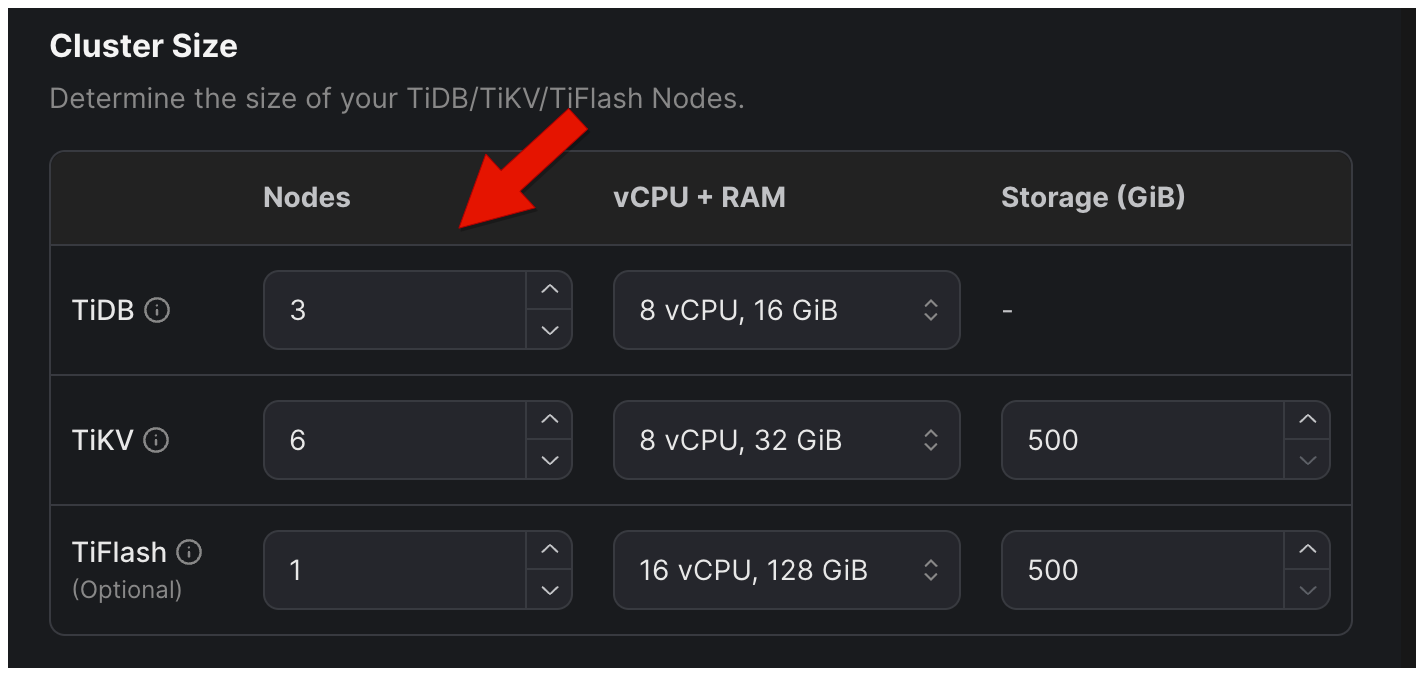

2. In the `Modify Cluster` window, you can increase the Node quantity of TiDB, TiKV, and TiFlash.
<img src="./diagram/ScaleOutCloudCluster01_aa_002_20230119.png" width="50%" align="top"/>

3. Review the cluster size in the right pane, and then click `Confirm`.
<img src="./diagram/ScaleOutCloudCluster02_aa_002_20230119.png" width="50%" align="top"/>

4. Wait for your TiDB Cloud cluster to scale out.


(b) Scale in TiDB Cloud cluster
1. Click drop-down menu in the upper-right corner, and then select `Modify`.
<img src="./diagram/GoModify_aa_002_20230119.png" width="50%" align="top"/>

2. In the `Modify Cluster` window, you can decrease the Node quantity of TiDB, TiKV,nd TiFlash.
<img src="./diagram/ScaleOutCloudCluster01_aa_002_20230119.png" width="50%" align="top"/>

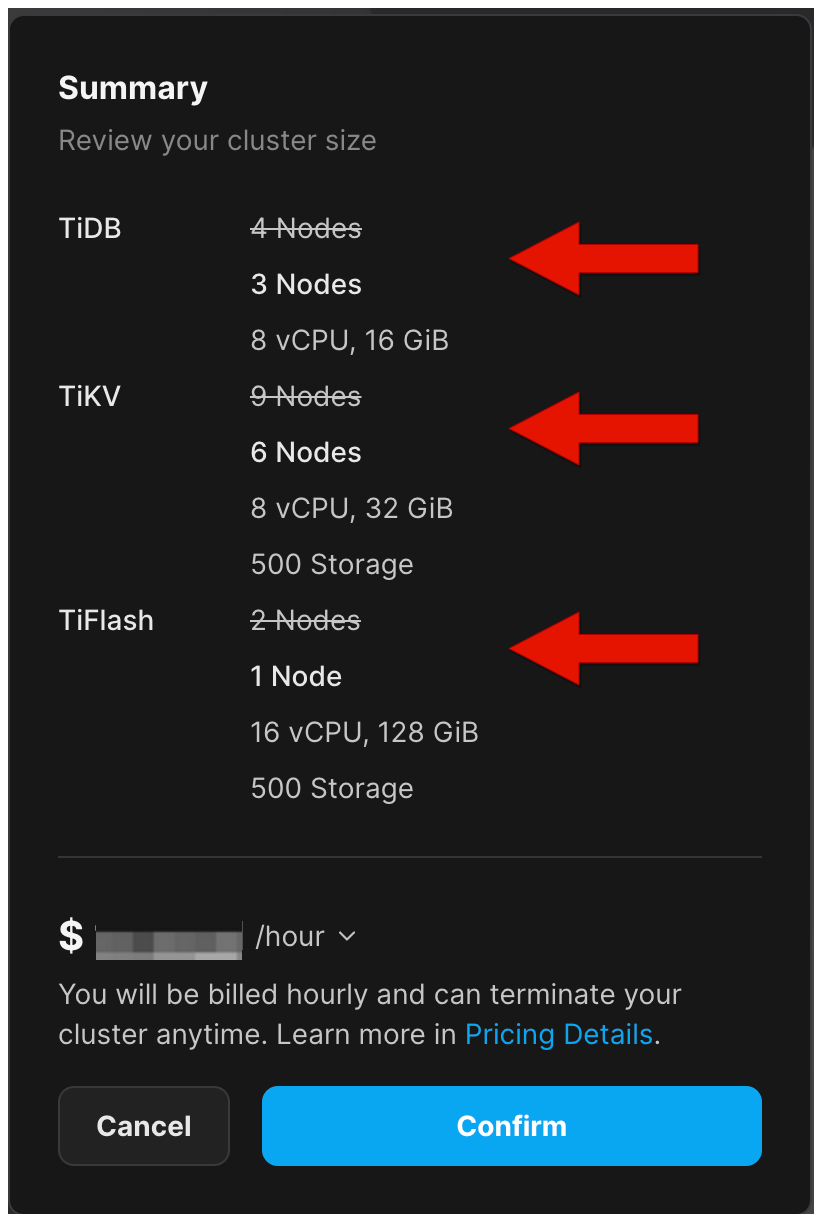

3. Review the cluster size in the right pane, and then click `Confirm`.
<img src="./diagram/ScaleInCloudCluster02_aa_004_20230119.png" width="50%" align="top"/>

4. Wait for your TiDB Cloud cluster to scale in.
